Hengchen FRP Grating: Your Integrated Industrial Solution

Hengchen's FRP grating meets strict industry requirements through a wide range of specifications and deep customization capabilities.

Dimensions and Mesh Design:

Standard Panel Sizes: 1.22m x 3.66m (4' x 12') and 1m x 4m.

Standard Thickness: 25mm (1"), 38mm (1.5"), 50mm (2").

Common Mesh Patterns: 38mm x 38mm (1.5" x 1.5"), 50mm x 50mm (2" x 2").

Customization: We produce non-standard panel sizes and mesh configurations with a dimensional tolerance of ±1mm to fit complex project layouts.

Data Point: Our 38mm thick molded grating with a 38mm x 38mm mesh pattern supports a uniform distributed load of up to 4.8 kN/m² (tested to ASTM D695).

Materials and Resin Systems:

Resin Options: Isophthalic Polyester (for general industrial environments), Vinyl Ester (for superior resistance to strong acids and alkalis), and Phenolic (for top-tier fire resistance, meeting ASTM E84 Class A with a flame spread index ≤25).

Fiberglass: We use E-glass for its excellent performance-to-cost ratio or C-glass for enhanced corrosion resistance. Glass fiber content is maintained between 30-40% for optimal strength.

Environmental Compliance: Our production utilizes low-VOC resins, minimizing environmental impact and adhering to EU environmental standards.

Load Capacity and Mechanical Performance:

Load Ratings: Light-duty (pedestrian traffic, 1.5 kN/m²), Medium-duty (industrial work platforms, 4.8 kN/m²), and Heavy-duty (light vehicular traffic, 7.2 kN/m²).

Performance Data: Our 38mm thick molded fiberglass reinforced plastic grating has a compressive strength of 120 MPa, while our pultruded profiles achieve a tensile strength of 300 MPa (per ASTM D638). Deflection is controlled within a L/200 ratio.

Advantage: Weighing only one-quarter of steel grating, our product increases installation efficiency by up to 30%.

Surface Treatment and Slip Resistance:

Surface Types: Gritted Top (providing R13 friction coefficient under EN 14122), Concave/Meniscus Top (for moderate slip resistance), and Smooth Top (for easy cleaning).

Application Data: In wet and oily conditions, our gritted surface improves the friction coefficient by 40%, significantly reducing the risk of slips and falls.

Color and Appearance:

Standard Colors: Green, Grey, Yellow, and Black. UV inhibitors are added to ensure no significant fading for over 10 years.

Customization: We can match any color from the RAL or Pantone color systems to meet specific architectural or branding needs.

Aesthetics: We provide 3D renderings to help clients visualize the final installation.

Fire and Electrical Performance:

Fire Resistance: Our phenolic gratings are certified to ASTM E84 Class A, making them suitable for airports, offshore facilities, and other high-risk environments.

Insulation Properties: The material is non-conductive with a resistivity greater than 109Ω·cm, ideal for electrical substations, cable trenches, and sensitive installations.

Hengchen's FRP grating stands out in the global market for these core characteristics:

Lightweight and High-Strength: With a density of only 1.8 g/cm³ (25% that of steel), it offers a tensile strength of up to 300 MPa, comparable to high-grade steel. This drastically reduces transportation and installation costs.

Superior Corrosion Resistance: Our gratings resist acids, alkalis, salts, and a wide range of chemicals. When tested according to ASTM D543, our vinyl ester grating retained over 95% of its strength after 1000 hours of immersion in a 5% sulfuric acid solution.

Exceptional Slip Resistance: The gritted surface achieves a friction coefficient of 0.65 (DIN 51130 R13), ensuring worker safety in wet, oily, or slippery conditions.

Radio Transparency and Frangibility: Ideal for airport applications, our grating has a radio signal interference rate of less than 1% and a frangible design that complies with ICAO safety standards for airfield fencing.

Low Maintenance Costs: No need for painting or protective coatings. Maintenance costs are up to 70% lower than steel, with a design life exceeding 20 years.

Molded and Pultruded Processes

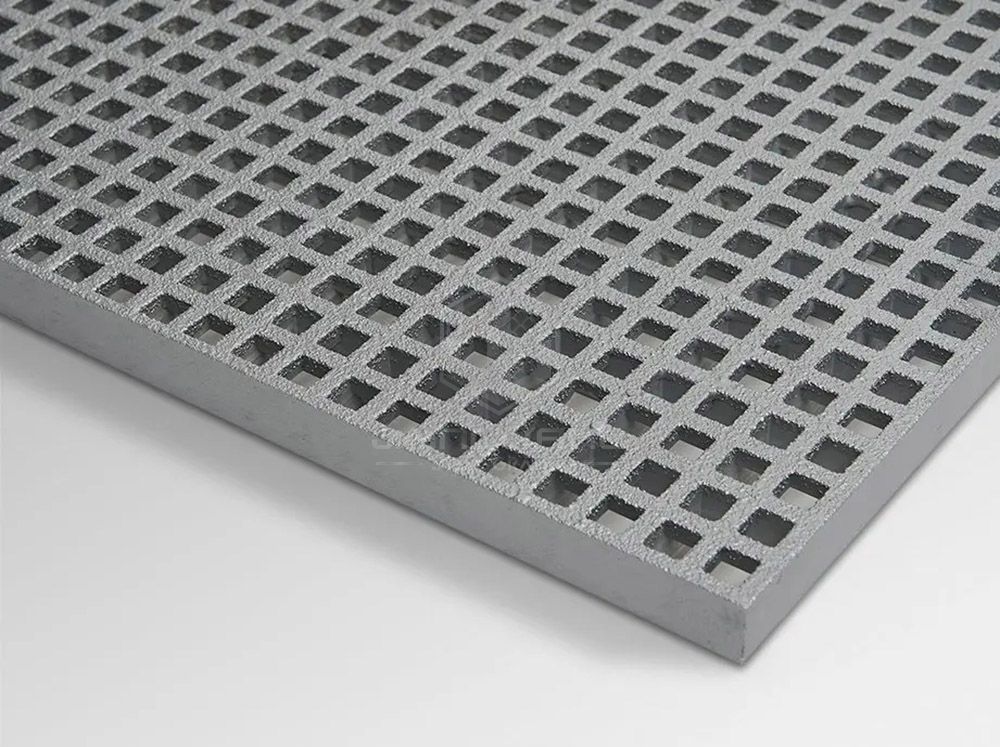

Molded Grating: A one-piece construction perfect for applications requiring uniform load distribution and bi-directional strength.

Pultruded Grating: Offers superior unidirectional strength, making it the choice for heavy-duty applications and long spans, with a 50% increase in tensile strength.

Choosing Hengchen means more than just buying a superior product; it means gaining a partner with deep industry expertise and a commitment to your success.

20 Years of Proven Experience: We have focused exclusively on FRP grating since our founding, successfully completing over 1,000 projects in more than 50 countries. Our expertise spans the chemical, marine, and aviation industries. We actively participate in international standards development and maintain long-term collaborations with certification bodies like DNV and ABS.

Integrated Manufacturing and Trade: Our model combines R&D, production, and sales under one roof. This allows us to control the entire supply chain, reduce costs by up to 30%, and offer highly competitive pricing. Our flexible production lines support rapid customization, with standard orders delivered in 2-4 weeks and urgent requests fulfilled in 7-10 days.

Certified Quality and Assurance: Our products are certified to ISO 9001, DNV, ABS, and ASTM E84 standards. With a 98% customer satisfaction rate, our quality is proven. We back our products with a 5-10 year warranty and provide a rapid response to any quality concerns (feedback within 24 hours, resolution within 7 days).

Comprehensive Technical Support: Our professional engineering team is available 24/7 to assist with material selection, design, and installation guidance. We provide performance test reports, chemical compatibility charts, and 3D modeling services to ensure a perfect fit for your project. On-site installation training is available for large-scale projects.

Global Supply Chain and Logistics: We partner with leading logistics providers like DHL and Maersk to offer reliable sea and air freight options. Our container optimization strategies can lower shipping costs by 15%. A global warehousing network ensures sufficient stock for urgent demands.
