Grating Stanchion Railing Ball Joint

Grating Stanchion Railing Ball Joint Handrail – Ideal for Steel Grating and Safety Grating

As is well known, steel grating is widely used in platforms, staircases, bridges, and offshore walkways, among other settings. To enhance the safety of these areas, we can provide matching grating stanchion railing ball joint handrails.

The grating ball joint stanchions are made from high-quality steel (low carbon steel or aluminum) and undergo various anti-corrosion surface treatments (galvanization, painting) to ensure a long service life.

The unique structure allows for simple and time-saving on-site installation. In addition to the stanchions, we can also provide rails, elbows, kickplates, and more for the installation of the entire system.

E-mail admin@steelbargrating.com WhatsApp +86 150 3015 7766

Configurations

Material

Mild steel – most commonly used material. Available in 3.2 mm (medium duty) and 4.0 mm (heavy duty) wall thickness.

Aluminum – better corrosion resistant performance make it be used in highly corrosive areas, such as water treatment plants, costal environments and offshore platforms & walkways.

Stainless steel – the best corrosion resistant performance for highly corrosive environments.

Finish

Black – for mild steel, no coating

Galvanized – for mild steel, hot dipped galvanized

Painted – for mild steel, aluminum or stainless steel, wet or dry (powder) coated to your specific colors

Mill finish – for aluminum, no coating

Heights

Single rail: according to design

Double rails: 1017 mm (the most popular)

Triple rails: 1200 mm

Column spacing

1000 mm

1200 mm

1500 mm

2000 mm

As customers request

Quantity of horizontal poles

One horizontal poles

Two horizontal poles

Three horizontal poles

Main structures

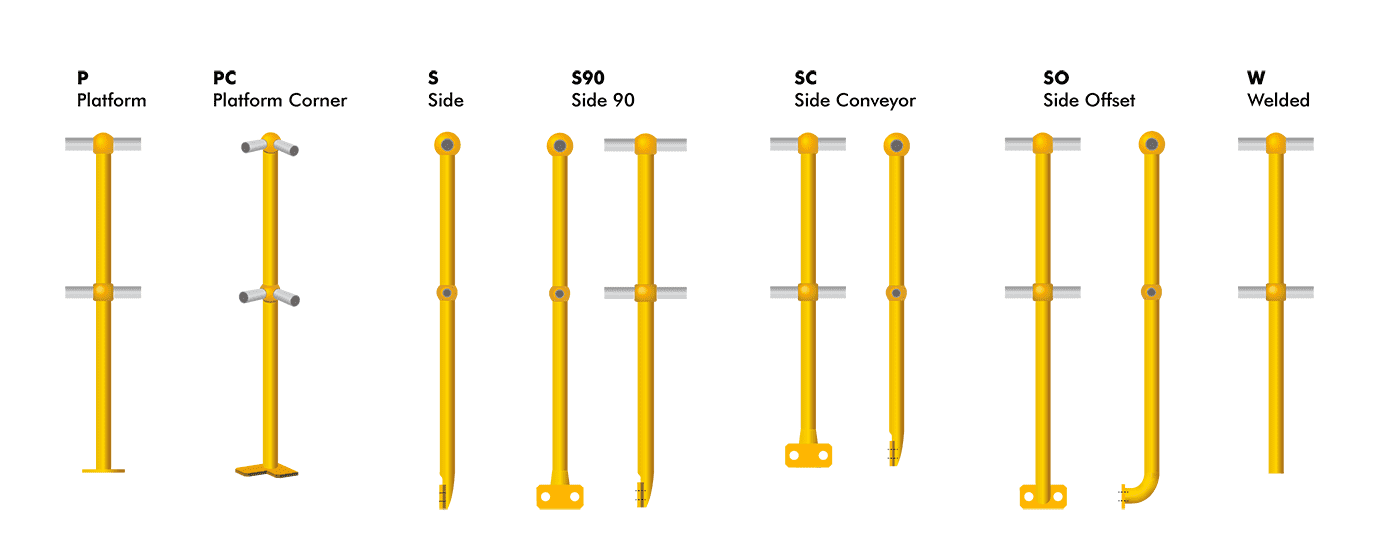

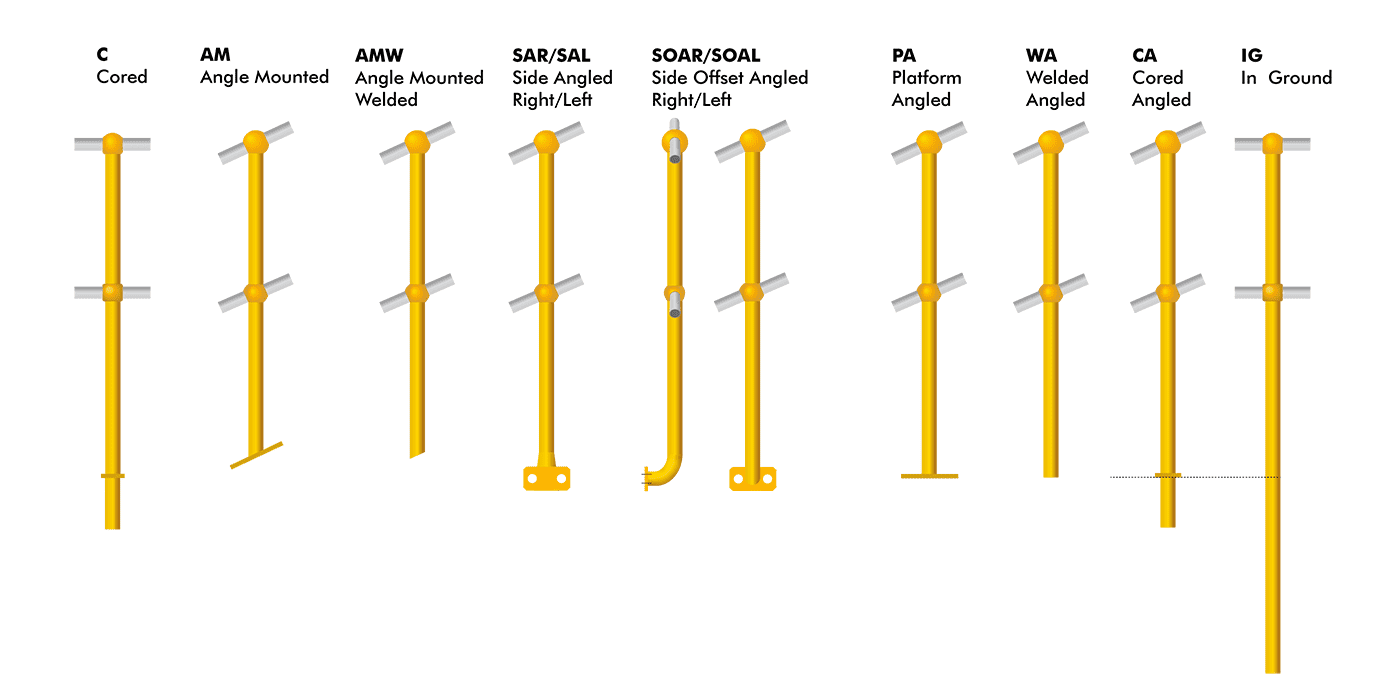

Standard Stanchions

Grating Stanchion Railing Ball Joint

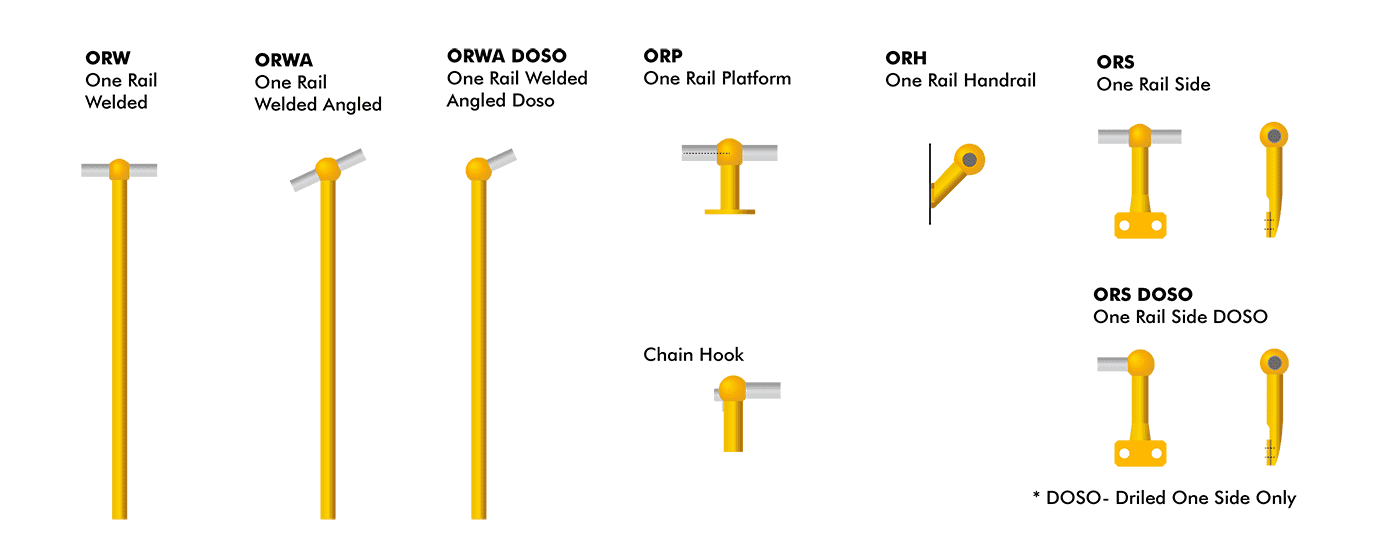

One-Rail Stanchions

Grating Stanchion Railing Ball Joint

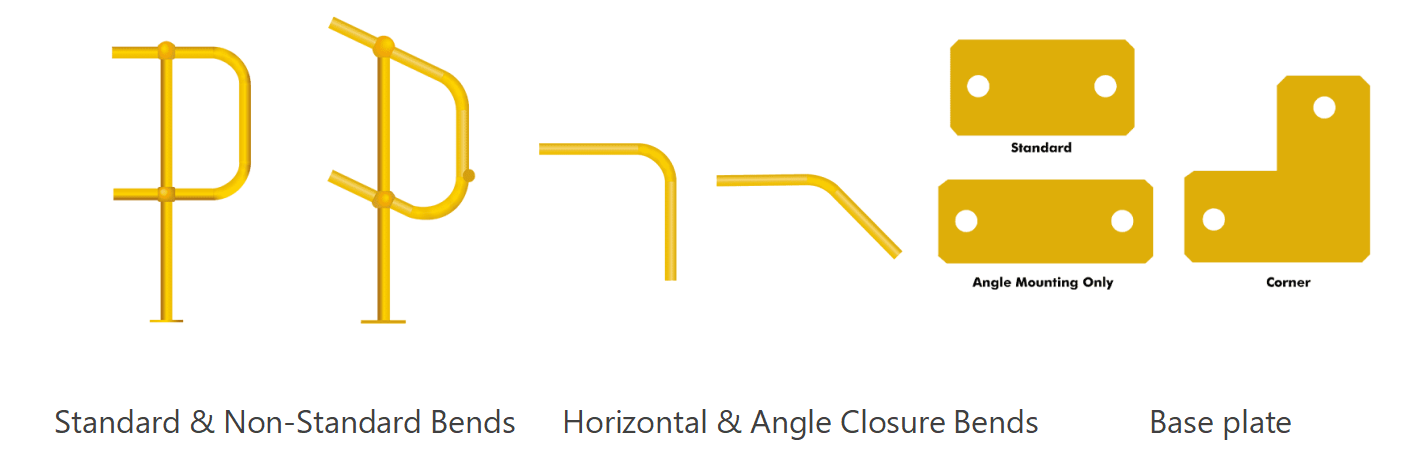

Bends & Base Plate

Grating Stanchion Railing Ball Joint

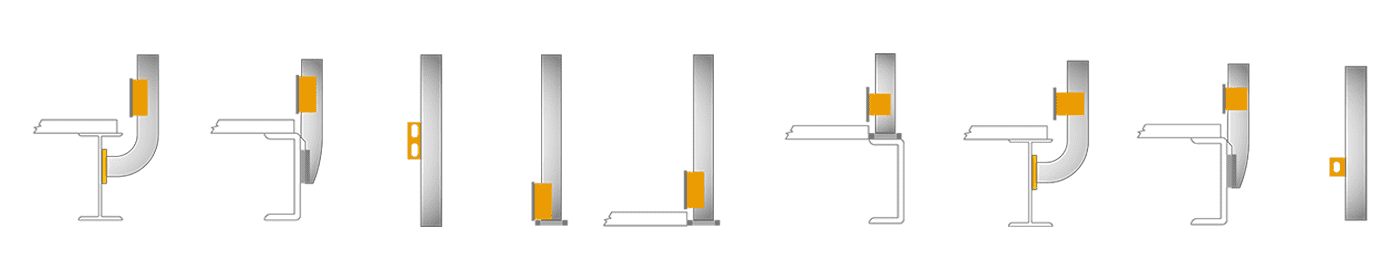

kick Plates

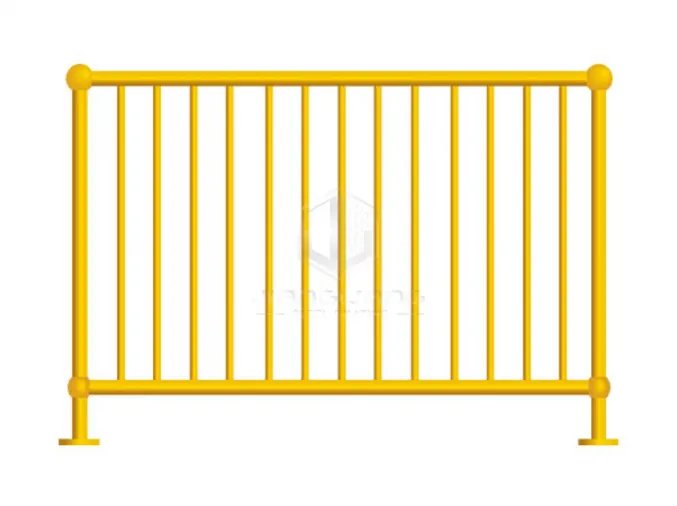

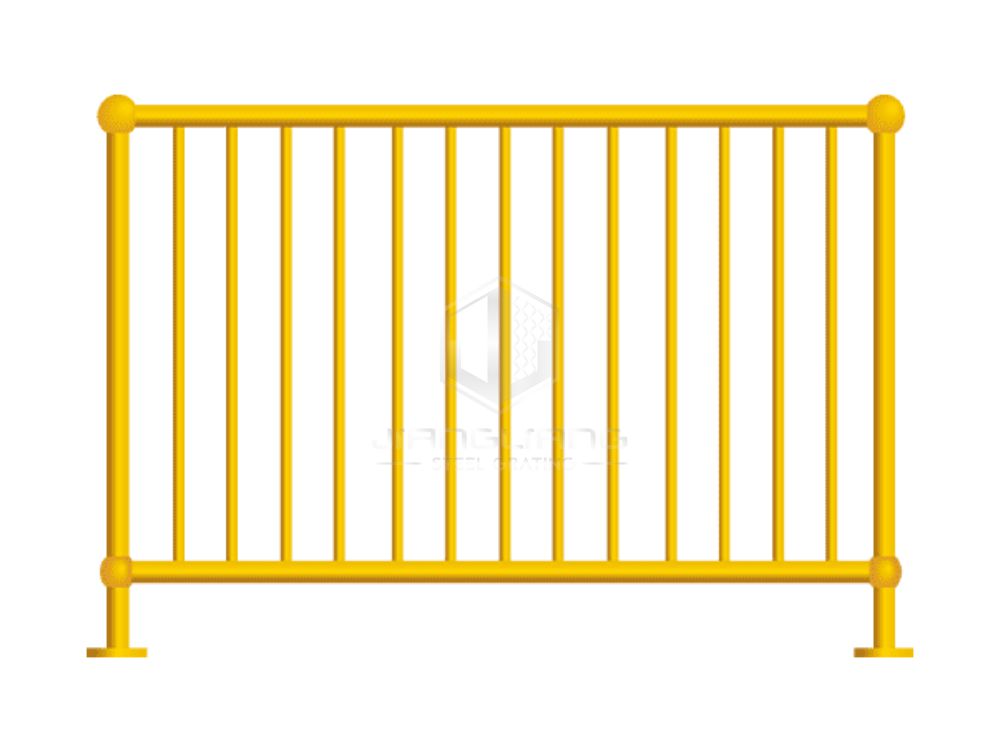

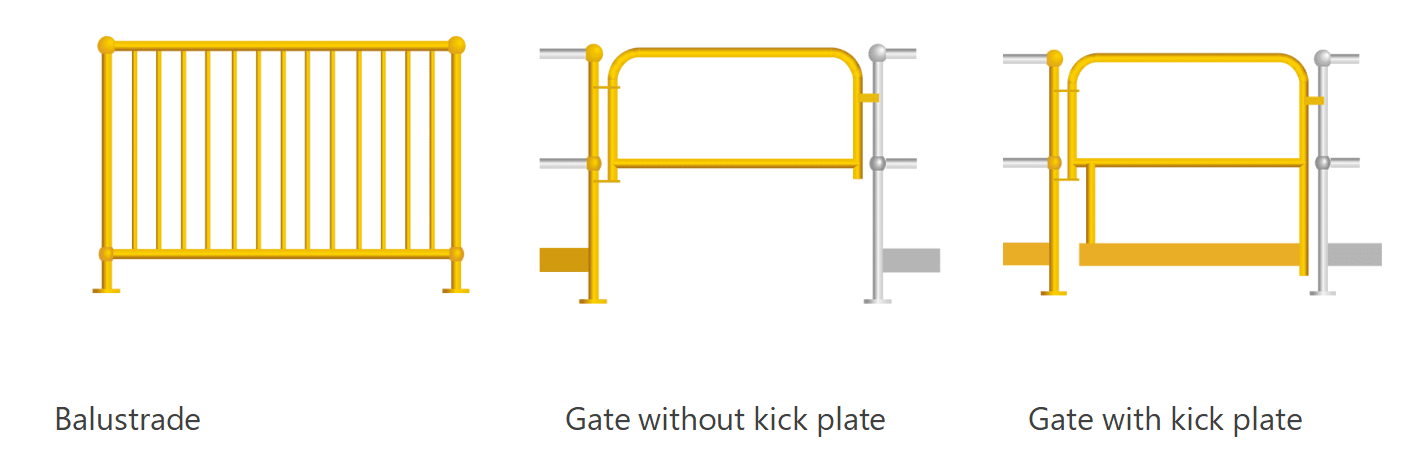

Balustrades & Gate

Grating Stanchion Railing Ball Joint

Package and Ship

For secure transportation, we offer the following packaging options:

Strap Packing: Ideal for small-sized press-locked grating.

Pallet Packing: Suitable for large orders and container loading.

Screw Rod Fixation: Secures the grating in place for safe transit.

Our products are carefully inspected and packaged to meet international shipping standards.

Why Choose Jiangliang?

Hebei Jiangliang Metal Technology Co., Ltd. has over 10 years of experience in the production of high-quality steel grating. We are dedicated to delivering top-tier products tailored to meet the specific needs of our global clients.

Why Choose Jiangliang?

Quality Assurance

Over a decade of industry expertise and innovation in manufacturing steel grating.

Global Delivery

We use advanced technology and premium materials to ensure consistent product quality.

Experience & Expertise

With reliable global shipping options, we ensure timely and secure delivery to your location.

Customization

We offer tailor-made solutions based on your unique project requirements, including customized sizes and finishes.
