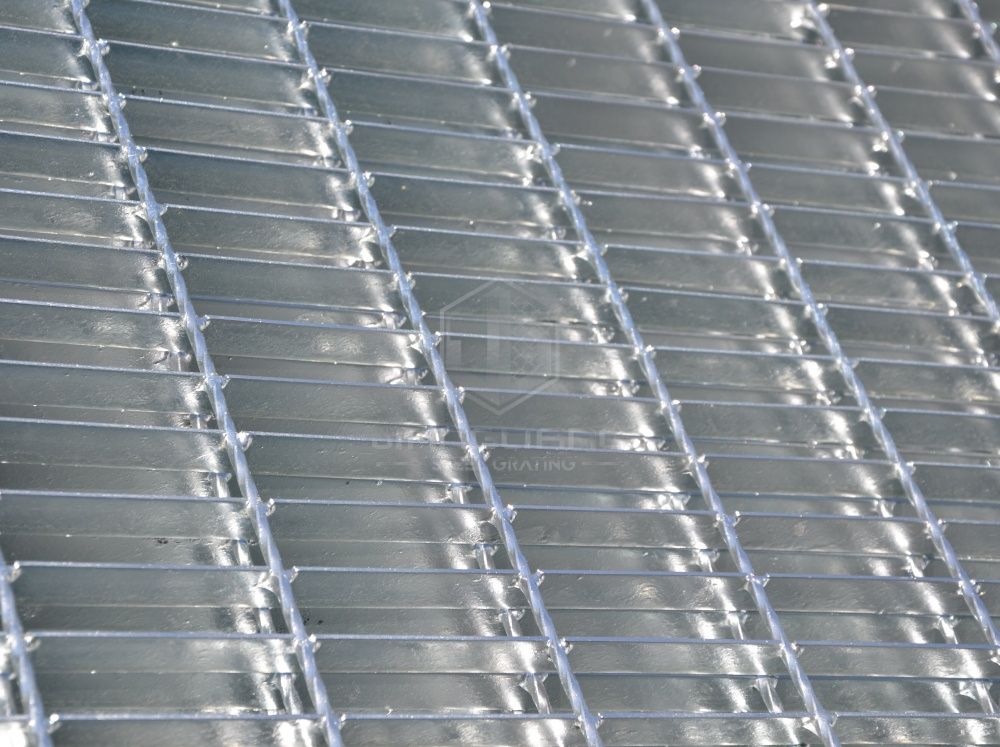

Standard Steel Grating

Material: Carbon Steel (ASTM A36, A1011, A569), Stainless Steel (304, 316), Aluminum

Bearing Bar Spacing: 15mm, 20mm, 25mm, 30mm, 33mm, 34.3mm, 40mm, 41.25mm, 60mm, or custom spacing.

Cross Bar Spacing: 50mm, 100mm, or custom spacing.

Bearing Bar Depth: 20mm to 100mm or custom sizes

Bearing Bar Thickness: 3mm to 10mm or custom sizes

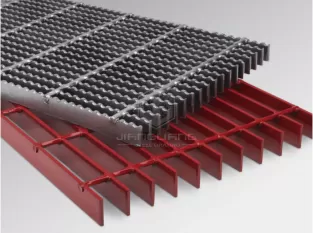

Surfaces:  plain or serrated surfaces

Finishes: Hot-dip galvanized, painted, or bare steel

High resistance to impact, corrosion, and wear

Custom fabrication available (cut-to-size, edge banding, bolt holes)

1. High Strength-to-Weight Ratio

Steel grating offers exceptional load-bearing capacity while remaining lightweight, reducing structural burden and simplifying installation.

2. Excellent Load Capacity

Designed to handle both pedestrian and heavy vehicular traffic. Ideal for industrial floors, platforms, and drainage covers.

3. Superior Ventilation & Drainage

The open grid design allows air, light, heat, and water to pass through freely—ideal for facilities requiring airflow or liquid runoff.

4. Anti-Slip Options

Available with serrated surfaces or slip-resistant coatings, providing extra safety in wet or oily environments.

5. Corrosion Resistance

Hot-dip galvanized steel gratings offer long-lasting protection against rust and corrosion—perfect for outdoor or marine applications.

6. Easy to Install and Maintain

Standard panel sizes and modular design make installation fast and cost-effective. Minimal maintenance needed over its lifespan.

7. Customizable

Available in a wide range of:

Bearing bar sizes and spacing

Cross bar configurations

Surface finishes (plain, galvanized, painted)

Shapes and cutouts for special projects

8. Cost-Effective

Combines durability, low maintenance, and long service life—lowering overall lifecycle cost compared to other flooring systems.

9. Complies with International Standards

Manufactured according to ASTM, ANSI/NAAMM, or EN standards, ensuring compatibility with global engineering and safety requirements.

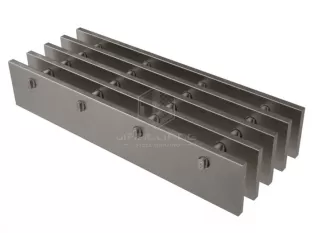

1.At each intersection of the bearing bars and cross bars, the components should be fixed by welding, riveting, or pressure locking.

2.Resistance welding is the preferred welding method for steel grating, although arc welding can also be used.

3.Pressure locking can be performed by pressing the cross bars into the bearing bars using a pressing machine to secure them firmly.

4.Steel grating can be fabricated into various sizes and shapes according to customer requirements.

5.The spacing of bearing bars and cross bars can be determined by both the supplier and the buyer based on design specifications. For industrial platforms, it is recommended that the bearing bar spacing does not exceed 40 mm and the cross bar spacing does not exceed 165 mm.
